Braided Brake Hose & Brake Fittings
Braided Brake Hoses & Brake Fittings
Stainless steel braided brake hoses and the full range of end fittings to build them, made to order in the UK by BRT Motorsport. Every hose is built to your specified length, colour and fitting combination.
Rubber brake hoses expand under pressure. That expansion is what gives an older car its soft, vague pedal: some of the force you apply at the pedal goes into swelling the hose rather than clamping the pads. A PTFE-lined hose inside a stainless braid doesn't expand, so pedal feel is firmer, more consistent, and doesn't deteriorate as the fluid heats up on track.
Hose specification
- PTFE inner core — chemically inert, unaffected by brake fluid, and dimensionally stable under heat. 3mm (1/8") internal diameter
- Stainless steel outer braid, PVC coated and wipe-clean — resists abrasion, stone chips and corrosion. 8mm (5/16") outside diameter
- 4,206 PSI (290 bar) maximum working pressure, 12,618 PSI (870 bar) burst pressure
- Operating temperature −70°C to 250°C (−94°F to 482°F)
- Minimum bend radius 19mm — worth checking before you commit to a tight routing
- Nine colours — red, blue, black, yellow, orange, green, purple, carbon and clear braid
- Built to order, from 80mm to 8,000mm
- Fittings in 303/304 stainless steel, made in Great Britain
Identifying the fitting you need
Most people come here knowing they need a hose and not knowing which end fittings. Four things determine it:
Thread size and pitch. The common brake threads are M10x1, M10x1.25, M10x1.5, M12x1, M12x1.25, M12x1.5, 3/8" UNF, 7/16"x20, 7/16"x24 and 1/8" BSP. M10x1 is by far the most common on European cars. Thread pitch matters as much as diameter — an M10x1 will start to thread into an M10x1.25 port and then bind.
Male or female. A male fitting has the external thread and screws into a port. A female fitting has an internal thread and receives a male union.
Fixed or swivel. A swivel nut rotates freely on the hose end, letting you align the hose without twisting it during installation. A fixed fitting doesn't, so the hose must be routed to suit. Swivel is easier to fit in almost every case.
Circlip groove or plain. Many VAG, Ford, Renault and Toyota calipers locate the hose with a circlip or horseshoe clip that sits in a machined groove on the fitting. If your original hose has a clip retaining it at the caliper or chassis bracket, you need a circlip groove fitting rather than a plain one.
What's in this collection
- Banjo hose ends — M8, M10 3/8", M12 and 7/16", including extended and double-exit banjos. The extended M10 3/8" banjo also comes in 20°, 45° and 90° side bends for lateral exits
- Male fittings — fixed and swivel nut, in M10x1, M10x1.25, M12x1, 3/8" UNF, 7/16"x20 and 7/16"x24
- Female fittings — swivel nut, fixed and square swivel, in M10x1, M10x1.25, M12x1, M12x1.25, M12x1.5, 3/8" UNF, 7/16"x20 and 1/8" BSP
- Circlip groove females — including 17mm and 19mm hex, milled flat, and VAG, Ford, Porsche and Toyota specific patterns
- Bulkhead fittings and lock nuts — M10x1, M16 external, 3/8" UNF and 7/16", for chassis pass-throughs
- Clutch fittings — Audi, BMW, Ford, Renault and Renault Mégane push-in connectors, plus adapters converting an OE push-in clutch fitting to M10x1 male or female
- Inline fittings — tee piece and swaged 90° elbow, for splitting or turning a line mid-run
- Braided hose by the millimetre — in all nine colours
Inline and specialist fittings
Beyond the end fittings, a few parts solve specific problems:
- AN3 quick release dry break coupling — £32.99, stainless steel or aluminium. Both halves seal as they separate, so a line can be disconnected and reconnected without draining the system or drawing air in. Worth having where something comes apart regularly — removable steering, quick-change assemblies, trackside servicing
- Brake hose tee piece — £20.95, crimped stainless. Splits one line into two mid-run without needing a bulkhead union
- Brake hose swaged elbow — £19.98, stainless 90°. For turning a line where there is no room for a bend radius
- Heat protection sleeve — £14.75 per metre. Slides over the braid to shield a hose routed near an exhaust or turbo. Note this is sold per metre, while the hose itself is priced per millimetre
- 3/8" x 24 UNF banjo brake light switch — £12.95. A direct replacement for the standard master cylinder brake switch, mounting on a banjo port
Building a custom hose
Use our Custom Brake Hose Builder to specify both ends, the angle at each end, colour and exact length, and we'll build it. Straight, 20°, 45° and 90° bends are available on most fittings.
Not sure what you need?
Send us a photo of your existing hose ends, or your vehicle Make & Model, and we'll identify the fittings for you before you order. We build these daily and can usually tell from a picture.
Related: brake fitting adaptors, banjo bolts, copper washers, hose locators.
Filters
Braided Brake Hose
BRT MotorsportBRT Motorsport Braided Brake Hose Upgrade your braking system with our stainless steel braided brake hose — engineered for performance vehicles whe...

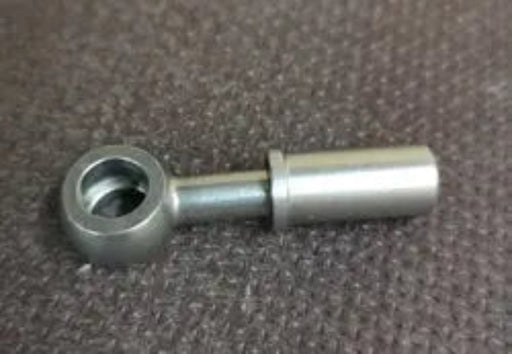

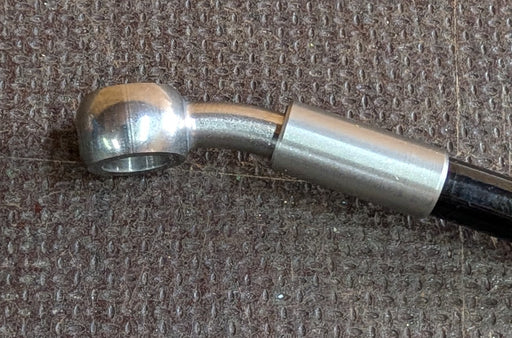

View full detailsM8 Banjo Hose End
BRT MotorsportM8 Banjo Hose End – Stainless Steel Brake Fitting A precision-machined M8 stainless steel banjo hose end designed for use with AN3 braided brake ho...

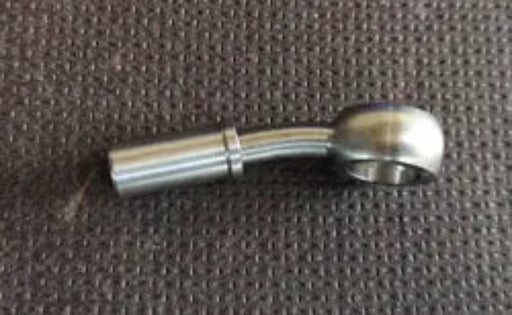

View full detailsM10 3/8" Banjo Hose End
BRT MotorsportM10 3/8" Banjo Hose End – Stainless Steel Brake Fitting A precision-machined M10 3/8" stainless steel banjo hose end built for use with AN3 braided...

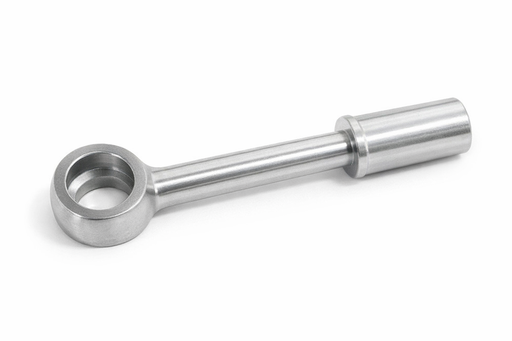

View full detailsM10 3/8" Extended Banjo Hose End
BRT MotorsportM10 3/8" Extended Banjo Hose End – Stainless Steel Brake Fitting When standard banjo fittings won't reach, the M10 3/8" extended banjo hose end giv...
View full detailsDouble Exit Banjo
BRT MotorsportDouble Exit Banjo – Stainless Steel Brake Fitting The double exit banjo is the go-to solution when you need to split a single brake line into two o...

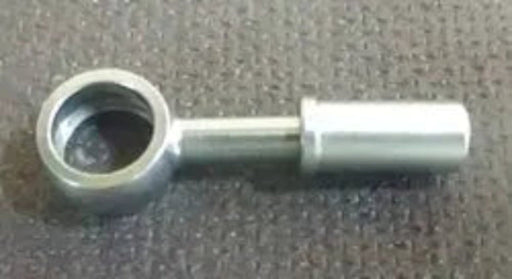

View full detailsM12 Banjo Hose End
BRT MotorsportM12 Banjo Hose End – Stainless Steel Brake Fitting A precision-machined M12 stainless steel banjo hose end designed for use with AN3 braided brake ...
View full details7/16" Banjo Hose End
BRT Motorsport7/16" Banjo Hose End – Stainless Steel Brake Fitting A precision-machined 7/16" stainless steel banjo hose end designed for use with AN3 braided br...
View full detailsM10x1 Fixed Male
BRT MotorsportM10x1 Fixed Male – Stainless Steel Brake Hose Fitting The M10x1 fixed male fitting is a straight, non-adjustable end fitting designed for use with ...
View full detailsM10x1 Fixed Male Bulkhead
BRT MotorsportM10x1 Fixed Male Bulkhead – Stainless Steel Brake Hose Fitting The M10x1 fixed male bulkhead fitting is designed for routing braided brake hose cle...

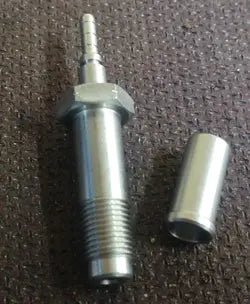

View full detailsM10x1 Extended Fixed Male Bulkhead
BRT MotorsportM10x1 Extended Fixed Male Bulkhead – Stainless Steel Brake Hose Fitting The M10x1 extended fixed male bulkhead offers additional thread length over...

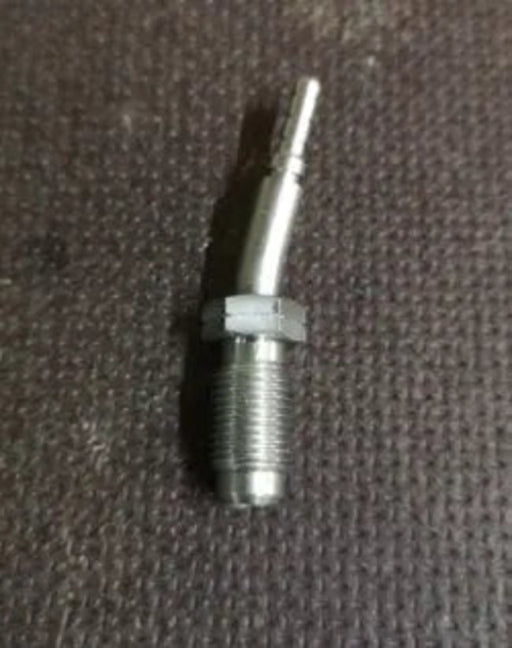

View full detailsM10x1 Male Swivel Nut
BRT MotorsportM10x1 Male Swivel Nut – Stainless Steel Brake Hose Fitting The M10x1 male swivel nut is a end fitting for AN3 braided brake hose, allowing the hose...
View full detailsM10x1.25 Male Swivel Nut
BRT MotorsportM10x1.25 Male Swivel Nut – Stainless Steel Brake Hose Fitting The M10x1.25 male swivel nut is a end fitting for AN3 braided brake hose, allowing th...

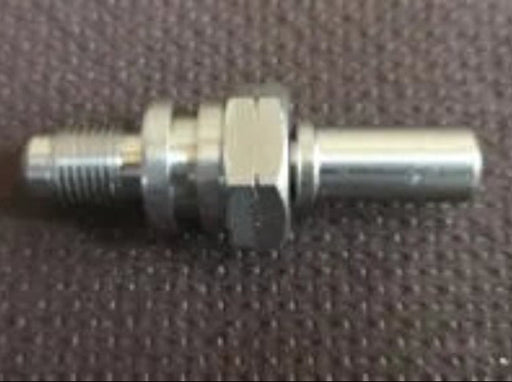

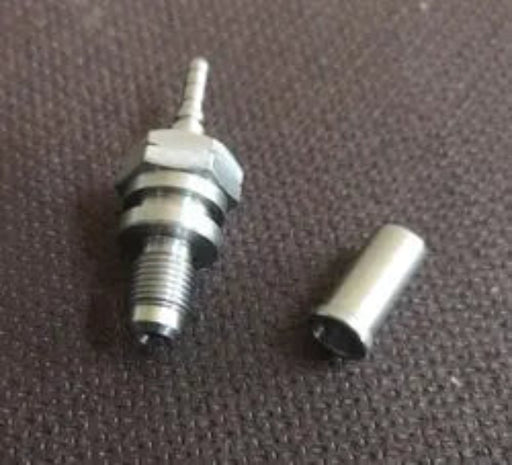

View full detailsMale Bulkhead Circlip Groove Ford
BRT MotorsportMale Bulkhead Circlip Groove Ford – Stainless Steel Brake Hose Fitting The male bulkhead circlip groove Ford fitting is a specialist brake hose end...
View full detailsM10x1 Female Swivel Nut
BRT MotorsportM10x1 Female Swivel Nut – Stainless Steel Brake Hose Fitting The M10x1 female swivel nut is a end fitting for AN3 braided brake hose, designed to c...

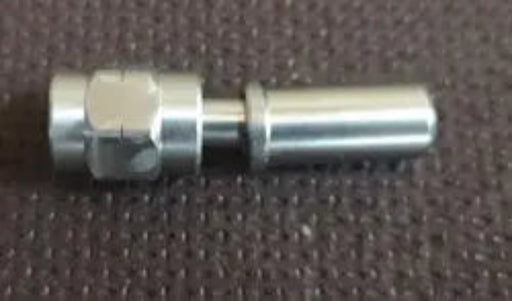

View full detailsM10x1.25 Female Swivel Nut
BRT MotorsportM10x1.25 Female Swivel Nut – Stainless Steel Brake Hose Fitting The M10x1.25 female swivel nut is a end fitting for AN3 braided brake hose, designe...
View full detailsM10x1 Female Nut
BRT MotorsportM10x1 Female Nut – Stainless Steel Brake Hose Fitting The M10x1 female nut is a straight end fitting for AN3 braided brake hose, designed to connec...
View full detailsM10x1 Square Swivel Female
BRT MotorsportM10x1 Square Swivel Female – Stainless Steel Brake Hose Fitting The M10x1 square swivel female fitting is a straight end fitting for AN3 braided br...
View full detailsM10x1 Circlip Groove Swivel Female 17mm Hex
BRT MotorsportM10x1 Circlip Groove Swivel Female 17mm Hex – Stainless Steel Brake Hose Fitting The M10x1 circlip groove swivel female fitting is a specialist bra...
View full detailsM10x1 Circlip Groove Swivel Female 19mm Hex
BRT MotorsportM10x1 Circlip Groove Swivel Female 19mm Hex – Stainless Steel Brake Hose Fitting The M10x1 circlip groove swivel female 19mm hex fitting is a speci...

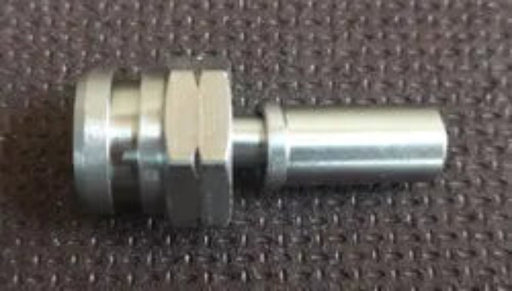

View full detailsM10x1.25 Circlip Groove Swivel Female
BRT MotorsportM10x1.25 Circlip Groove Swivel Female – Stainless Steel Brake Hose Fitting The M10x1.25 circlip groove swivel female fitting is a specialist brake ...
View full detailsM10x1.5 Circlip Groove Swivel Female
BRT MotorsportM10x1.5 Circlip Groove Swivel Female – Stainless Steel Brake Hose Fitting The M10x1.5 circlip groove swivel female fitting is a specialist brake ho...
View full detailsM10x1 Female Circlip Groove With Milled Flat
BRT MotorsportM10x1 Female Circlip Groove With Milled Flat – Stainless Steel Brake Hose Fitting The M10x1 female circlip groove fitting with milled flat is a spe...

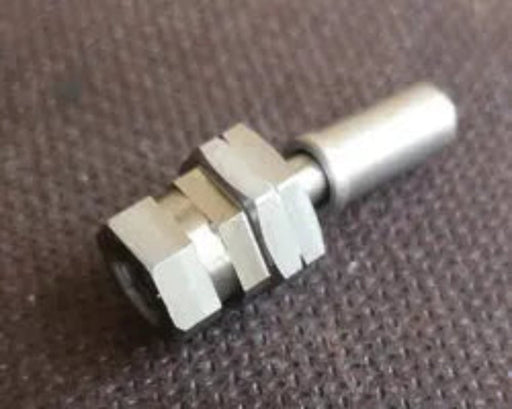

View full detailsM10x1 Female Circlip Groove Swivel Vag / Ford
BRT MotorsportM10x1 Female Circlip Groove Swivel VAG / Ford – Stainless Steel Brake Hose Fitting The M10x1 female circlip groove swivel fitting for VAG and Ford ...

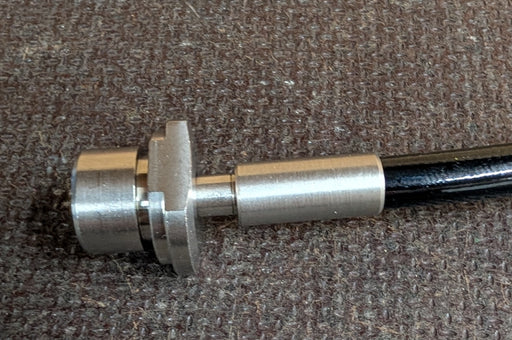

View full detailsToyota Circlip Female M10x1
BRT MotorsportToyota Circlip Female M10x1 – Stainless Steel Brake Hose Fitting The Toyota circlip female M10x1 fitting is a vehicle-specific brake hose end desig...
View full detailsFixed Female M10x1 Porsche Vag
BRT MotorsportFixed Female M10x1 Porsche VAG – Stainless Steel Brake Hose Fitting The fixed female M10x1 Porsche VAG fitting is a vehicle-specific straight brake...
View full detailsM10x1 Swivel Female Bulkhead Fitting
BRT MotorsportM10x1 Swivel Female Bulkhead Fitting – Stainless Steel Brake Hose Fitting The M10x1 swivel female bulkhead fitting is designed for routing AN3 brai...
View full detailsM12x1 Male Swivel Nut
BRT MotorsportM12x1 Male Swivel Nut – Stainless Steel Brake Hose Fitting The M12x1 male swivel nut is a end fitting for AN3 braided brake hose, allowing the hose...
View full detailsM12x1 Female For -3 Hose
BRT MotorsportM12x1 Female Swivel Nut – Stainless Steel Brake Hose Fitting for AN3 (-3) Hose The M12x1 female swivel nut is a end fitting for AN3 (-3) braided br...
View full detailsM12x1.25 Female For -3 Hose
BRT MotorsportM12x1.25 Female Swivel Nut – Stainless Steel Brake Hose Fitting for AN3 (-3) Hose The M12x1.25 female swivel nut is a end fitting for AN3 (-3) brai...
View full detailsM12x1.5 Female For -3 Hose
BRT MotorsportM12x1.5 Female Swivel Nut – Stainless Steel Brake Hose Fitting for AN3 (-3) Hose The M12x1.5 female swivel nut is a end fitting for AN3 (-3) braide...
View full details3/8" UNF Fixed Male
BRT Motorsport3/8" UNF Fixed Male – Stainless Steel Brake Hose Fitting The 3/8" UNF fixed male fitting is a straight, non-adjustable end fitting for AN3 braided ...
View full details3/8" UNF Fixed Male Bulkhead
BRT Motorsport3/8" UNF Fixed Male Bulkhead – Stainless Steel Brake Hose Fitting The 3/8" UNF fixed male bulkhead fitting is designed for routing AN3 braided brak...
View full details3/8" UNF Male Swivel Nut
BRT Motorsport3/8" UNF Male Swivel Nut – Stainless Steel Brake Hose Fitting The 3/8" UNF male swivel nut is a end fitting for AN3 braided brake hose, allowing th...
View full details3/8" UNF Female Swivel Nut
BRT Motorsport3/8" UNF Female Swivel Nut – Stainless Steel Brake Hose Fitting The 3/8" UNF female swivel nut is a adjustable end fitting for AN3 braided brake ho...
View full details3/8" UNF Circlip Groove Swivel Female
BRT Motorsport3/8" UNF Circlip Groove Swivel Female – Stainless Steel Brake Hose Fitting The 3/8" UNF circlip groove swivel female fitting is a specialist brake ...
View full detailsFemale Internal M10x1 M16 External Bulkhead
BRT MotorsportFemale Internal M10x1 / M16 External Bulkhead – Stainless Steel Brake Hose Fitting The female internal M10x1 / M16 external bulkhead fitting is a d...
View full detailsFemale Internal 3/8"x24 M16 External Bulkhead
BRT MotorsportFemale Internal 3/8"x24 / M16 External Bulkhead – Stainless Steel Brake Hose Fitting The female internal 3/8"x24 / M16 external bulkhead fitting is...
View full details7/16" x 20 Female Swivel Nut
BRT Motorsport7/16" x 20 Female Swivel Nut – Stainless Steel Brake Hose Fitting The 7/16" x 20 female swivel nut is a end fitting for AN3 braided brake hose, des...
View full details7/16 x 24 Circlip Groove Swivel Female
BRT Motorsport7/16" x 24 Circlip Groove Swivel Female – Brake Hose Fitting The 7/16" x 24 circlip groove swivel female fitting is a specialist brake hose end for...
View full details7/16"x20 Male Swivel Nut
BRT Motorsport7/16" x 20 Male Swivel Nut – Stainless Steel Brake Hose Fitting The 7/16" x 20 male swivel nut is a end fitting for AN3 braided brake hose, allowin...
View full details7/16 x 20 Bulkhead Fitting For -3 Hose
BRT Motorsport7/16" x 20 Fixed Male Bulkhead Fitting – Stainless Steel Brake Hose Fitting The 7/16" x 20 fixed male bulkhead fitting is designed for routing AN3 ...
View full details7/16 Bulkhead Lock Nut
BRT Motorsport7/16" x 20 Bulkhead Lock Nut – Stainless Steel The 7/16" x 20 bulkhead lock nut is used to secure a 7/16" x 20 UNF bulkhead fitting through a panel...
View full details7/16x24 Male Swivel Nut
BRT Motorsport7/16" x 24 Male Swivel Nut – Brake Hose Fitting The 7/16" x 24 male swivel nut is a end fitting for AN3 braided brake hose, allowing the hose end t...
View full details1/8" BSP Female Swivel Nut
BRT Motorsport1/8" BSP Female Swivel Nut – Stainless Steel Brake Hose Fitting The 1/8" BSP female swivel nut is end fitting for AN3 braided brake hose, designed ...
View full details1/8" BSP Male Tube Nut
BRT Motorsport1/8" BSP Male Tube Nut – Stainless Steel Brake Hose Fitting The 1/8" BSP male tube nut is a end fitting for AN3 braided brake hose, designed to con...
View full detailsAudi 1 Clutch Fitting
BRT MotorsportAudi 1 Clutch Fitting – Stainless Steel Braided Hose Fitting The Audi 1 clutch fitting is a vehicle-specific stainless steel end fitting designed f...
View full detailsAudi 2 Clutch Fitting
BRT MotorsportAudi 2 Clutch Fitting – Stainless Steel Braided Hose Fitting The Audi 2 clutch fitting is a vehicle-specific stainless steel end fitting designed f...
View full detailsBMW Evo Megane Clutch Fitting
BRT MotorsportBMW / Evo / Megane Clutch Fitting – Stainless Steel Braided Hose Fitting The BMW / Evo / Megane clutch fitting is a vehicle-specific stainless stee...
View full details
