1/8" BSP Female Swivel Nut – Stainless Steel Brake Hose Fitting

The 1/8" BSP female swivel nut is end fitting for AN3 braided brake hose, designed to connect to male 1/8" BSP threaded ports. The swivel action allows the hose end to rotate freely during installation, ensuring perfect alignment without twisting or stressing the hose.

Commonly used for , pressure sensor ports, and other 1/8" BSP threaded fittings on performance and motorsport vehicles. Available in four angle configurations to suit any routing requirement.

Variants

• Straight – direct fitment for unobstructed runs

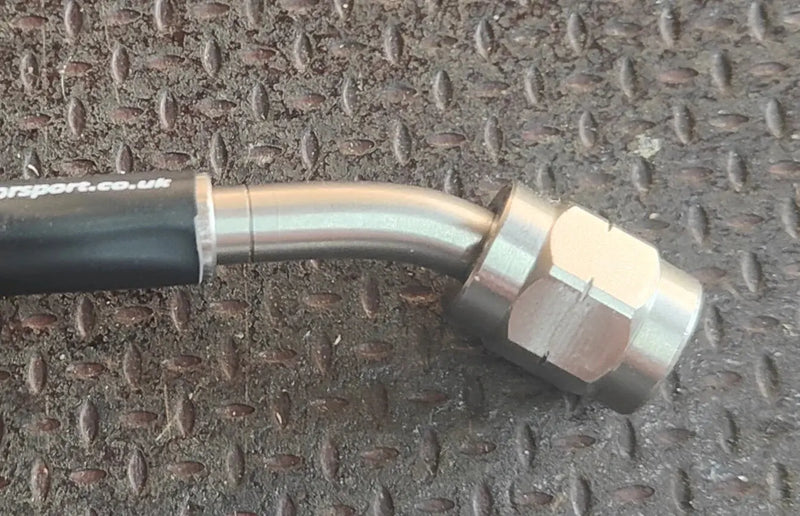

• 20° Bend – subtle offset for tight clearances

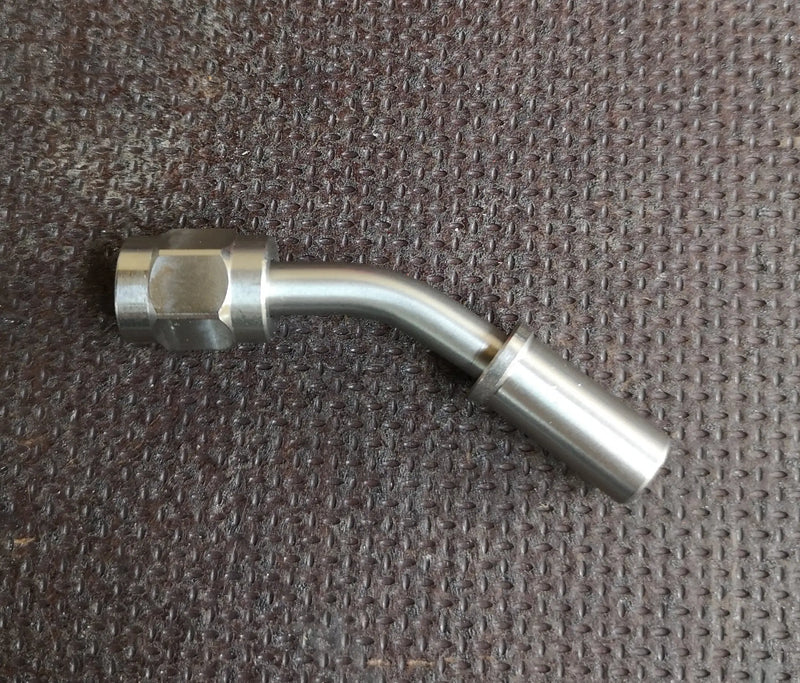

• 45° Bend – versatile mid-angle routing

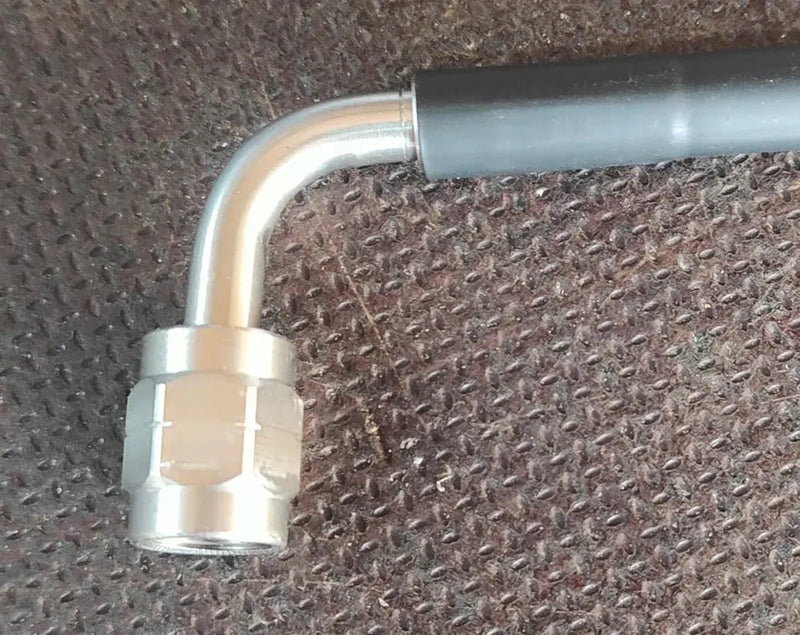

• 90° Bend – right-angle fitment

Specification

• Thread: 1/8" BSP (Female)
• Type: Female Swivel Nut
• Material: Stainless Steel (303/304)
• Compatible with: AN3 (-3 AN, Dash 3) braided brake hose
• Includes ferrule

Pair with our full range of brake fittings or use our Custom Brake Hose Builder to spec a complete kit.
