3/8" UNF Female Swivel Nut – Stainless Steel Brake Hose Fitting

The 3/8" UNF female swivel nut is a adjustable end fitting for AN3 braided brake hose, designed to connect to male 3/8" UNF threaded brake ports. The swivel action allows the hose end to rotate freely during installation, ensuring perfect alignment without twisting or stressing the hose — essential for a clean, professional brake line build.

Commonly used on classic British vehicles, older performance cars, and motorsport applications where a female 3/8" UNF connection is required at the caliper, master cylinder, or inline fitting. Available in four angle configurations.

Variants

• Straight – direct fitment for unobstructed runs

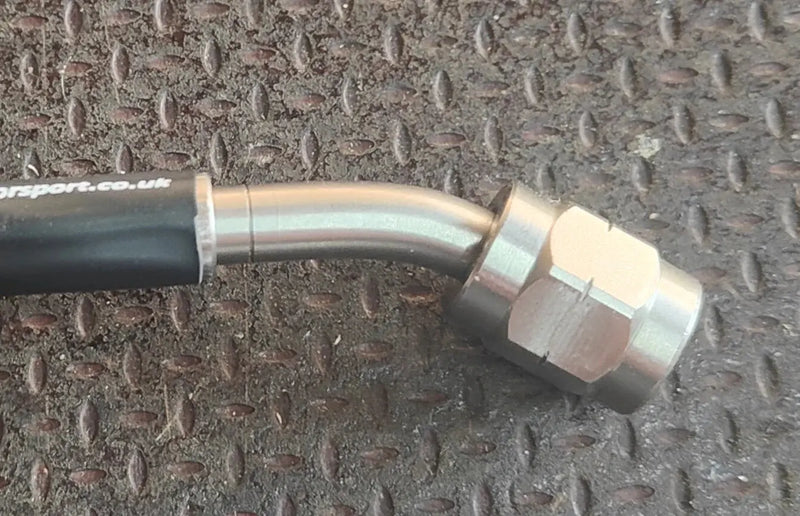

• 20° Bend – subtle offset for tight clearances

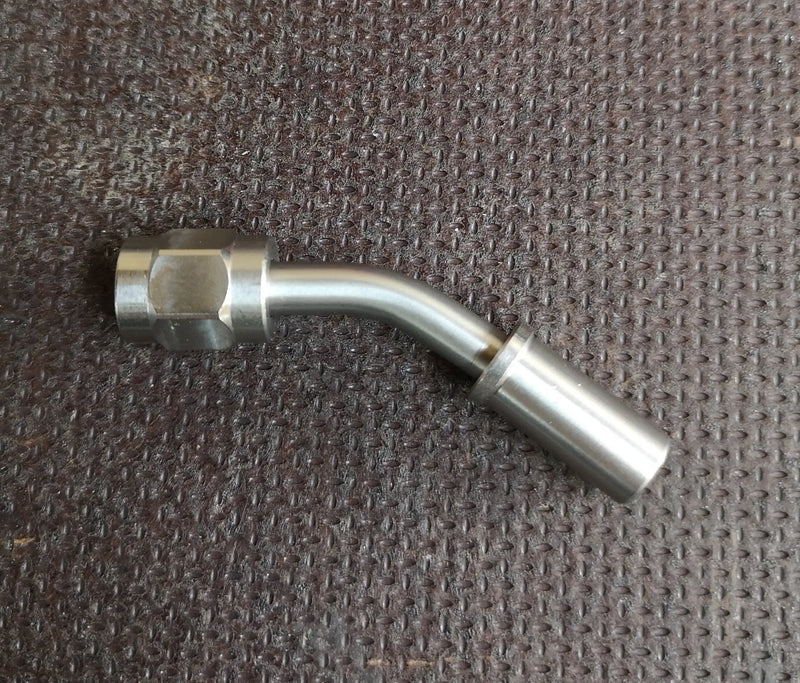

• 45° Bend – versatile mid-angle routing

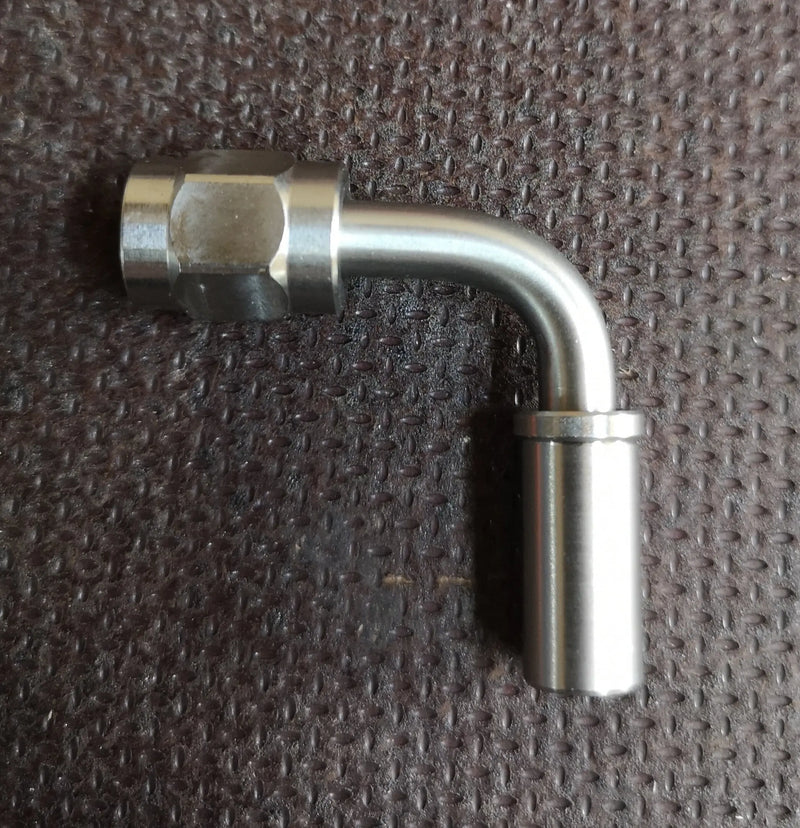

• 90° Bend – right-angle fitment, ideal for caliper connections

Specification

• Thread: 3/8" UNF (Female)
• Type: Female Swivel Nut Dual Seat
• Material: Stainless Steel (303/304)
• Compatible with: AN3 (-3 AN, Dash 3) braided brake hose
• Includes ferrule

Pair with our full range of brake fittings or use our Custom Brake Hose Builder to spec a complete kit.
