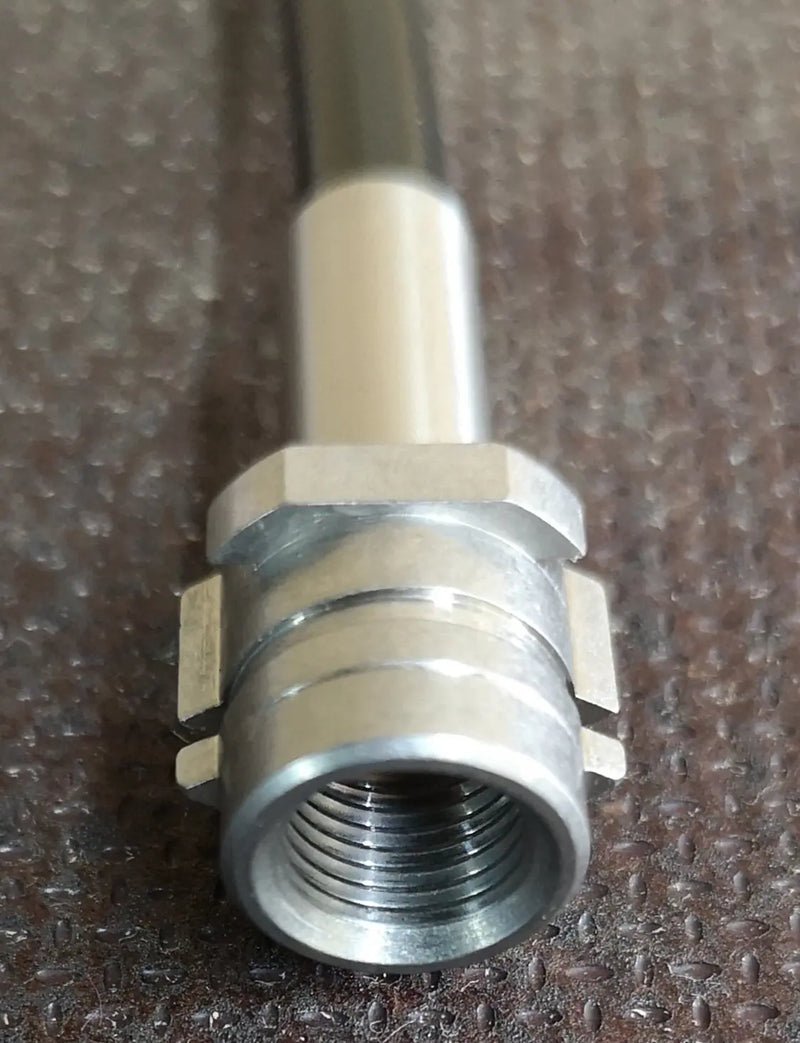

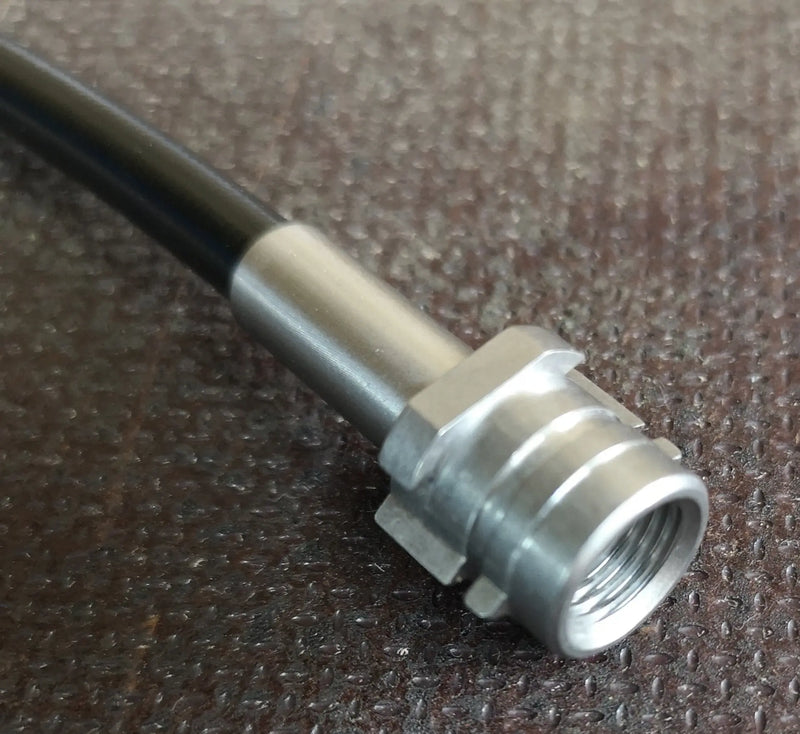

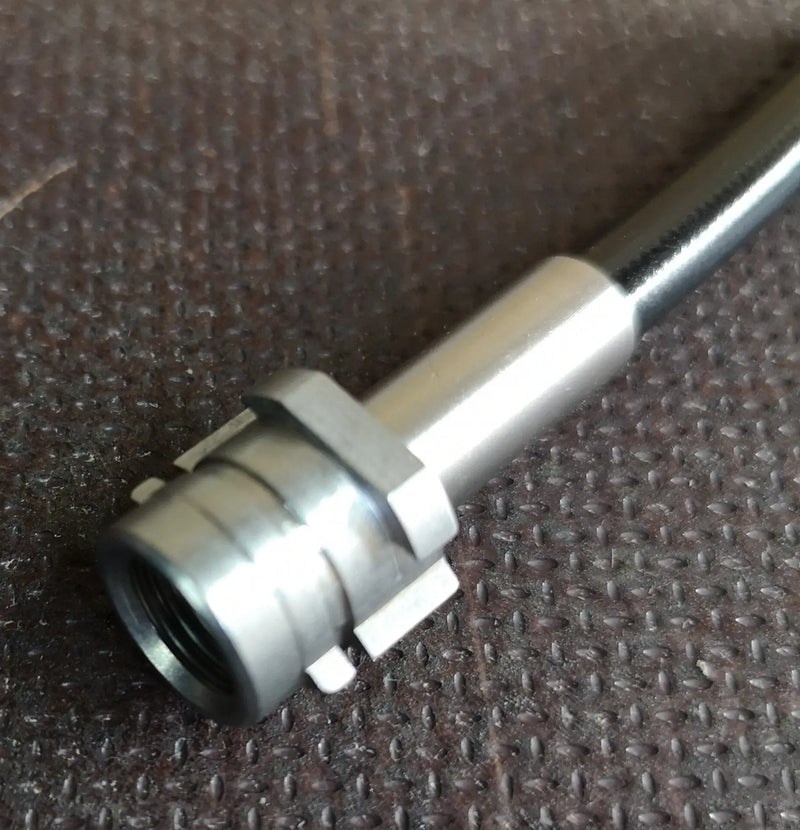

Fixed Female M10x1 Porsche VAG – Stainless Steel Brake Hose Fitting

The fixed female M10x1 Porsche VAG fitting is a vehicle-specific straight brake hose end designed to match the caliper or bulkhead port geometry found on Porsche and Volkswagen Group (VAG) vehicles. Unlike a standard swivel nut, this is a fixed (non-rotating) female fitting — engineered to the correct profile for a flush, factory-style connection on these platforms.

If you're building braided brake hoses for a Porsche, VW, Audi, Seat, or Skoda and need a fixed female end, this is the correct fitting. Straight only.

Specification

• Thread: M10 x 1.0 (Female)
• Type: Fixed Female – Porsche / VAG Concave Seat (Straight)
• Material: Stainless Steel (303/304)
• Compatible with: AN3 (-3 AN, Dash 3) braided brake hose
• Includes ferrule

Pair with our full range of brake fittings or use our Custom Brake Hose Builder to spec a complete kit.
