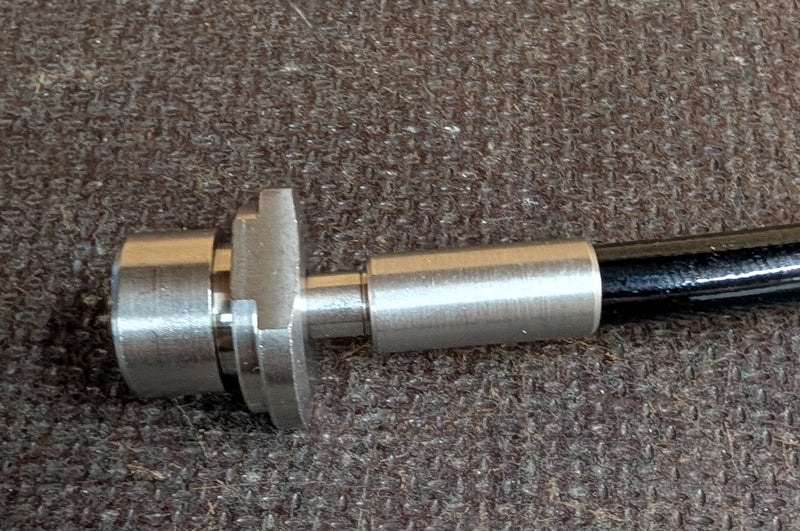

Toyota Circlip Female M10x1 – Stainless Steel Brake Hose Fitting

The Toyota circlip female M10x1 fitting is a vehicle-specific brake hose end designed to match the bulkhead retention system used on Toyota vehicles. The circlip groove locks the fitting securely through the bulkhead panel without a lock nut, while the M10x1 female thread provides the brake line connection. Straight only.

If you're building or replacing braided brake hoses on a Toyota and need a circlip-retained female bulkhead end, this is the correct fitting for the factory-style connection.

Specification

• Thread: M10 x 1.0 (Female)
• Type: Circlip Groove Female Dual Seat (Straight)
• Material: Stainless Steel (303/304)
• Compatible with: AN3 (-3 AN, Dash 3) braided brake hose
• Vehicle Fitment: Toyota
• Includes ferrule

Pair with our full range of brake fittings or use our Custom Brake Hose Builder to spec a complete kit.
