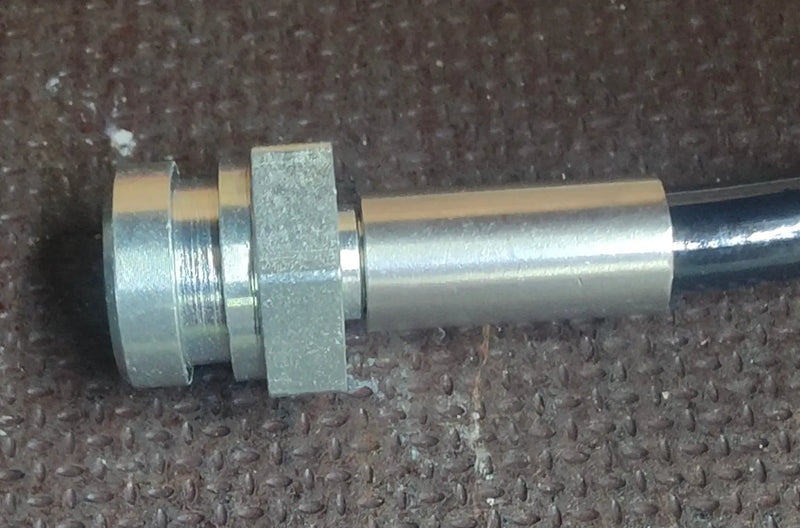

7/16" x 24 Circlip Groove Swivel Female – Brake Hose Fitting

The 7/16" x 24 circlip groove swivel female fitting is a specialist brake hose end for bulkhead installations on vehicles with 7/16" x 24 UNF threaded brake ports. The circlip groove locks the fitting securely through the bulkhead panel without a lock nut, while the swivel action lets the hose rotate freely for perfect alignment during installation.

Features an SAE inverted seat and 17mm hex body for a solid spanner grip. Commonly used on American vehicles and motorsport applications running 7/16" x 24 UNF brake fittings. Straight only.

Specification

• Thread: 7/16" x 24 UNF (Female)
• Type: Circlip Groove Swivel Female (Straight)
• Seat Type: SAE Inverted
• Hex Size: 17mm
• Compatible with: AN3 (-3 AN, Dash 3) braided brake hose
• Includes ferrule

Pair with our full range of brake fittings or use our Custom Brake Hose Builder to spec a complete kit.
