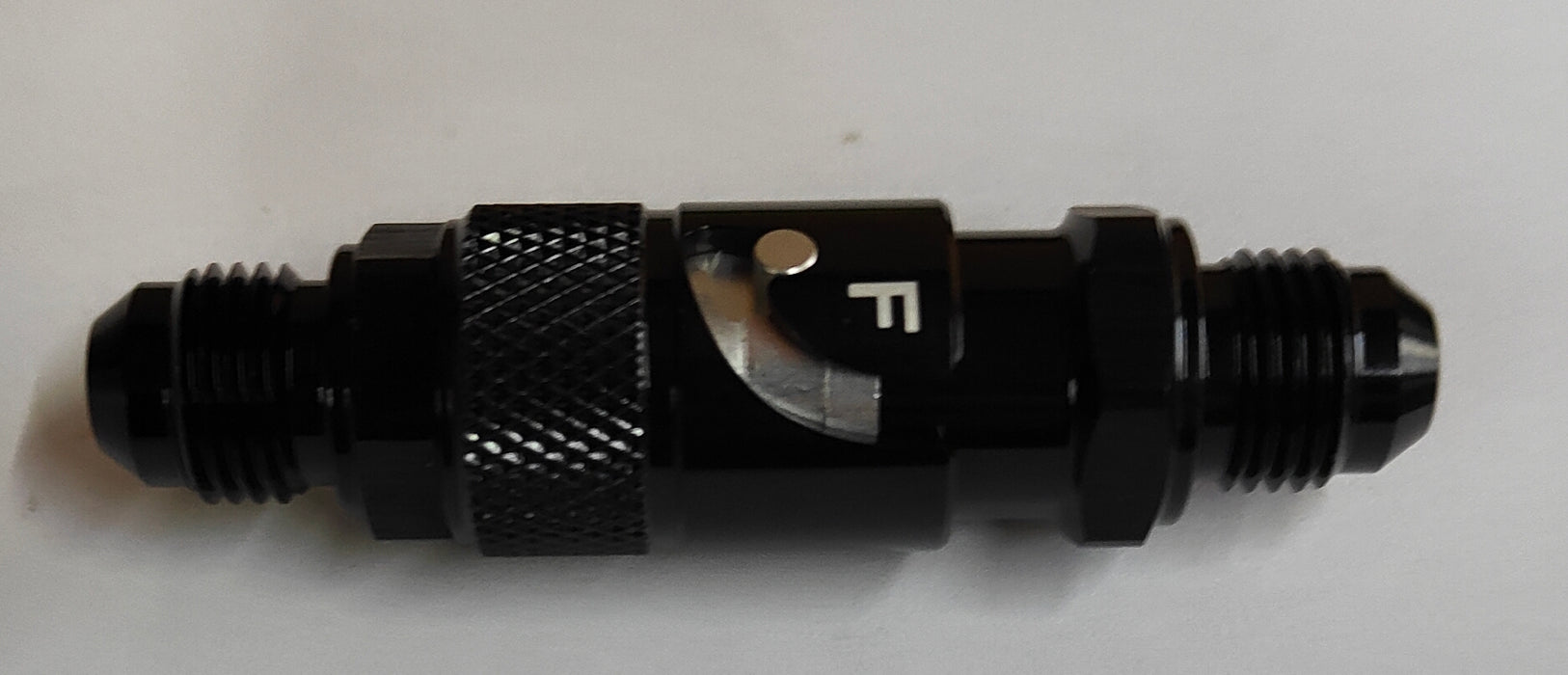

AN6 Quick Release Dry Break Coupling Fuel

AN-6 Quick Release Dry Break Coupling — Fuel, E85

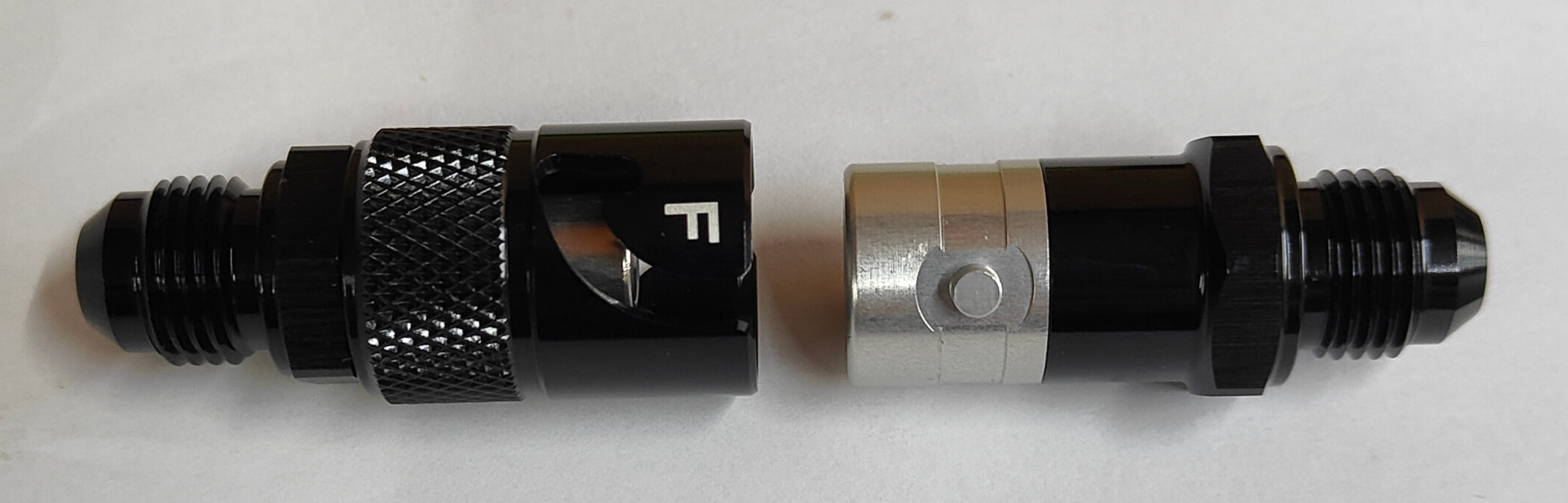

An aluminium AN-6 (-6) quick release dry break coupling for fuel, oil, and E85 fluid line applications. Dry break couplings are designed to disconnect fluid lines quickly and cleanly without spillage — when separated, both halves of the coupling seal automatically, preventing fluid loss and eliminating the mess and fire risk associated with conventional wet-break disconnects. Essential for motorsport and competition vehicles where fast, safe fuel line disconnection is required.

Operated via a simple push-and-twist bayonet locking mechanism for fast, positive connection and disconnection. Machined from aluminium for a lightweight, durable construction.

Key Features

• Dry Break Design: Both halves seal automatically on disconnection — no fluid spillage, no mess, no fire risk
• Push & Twist Bayonet Lock: Fast, positive connection and disconnection without tools
• AN-6 (-6) Fitting: Compatible with standard AN-6 braided hose end fittings and -6 fluid line systems
• Aluminium Construction: Lightweight and durable — suitable for motorsport and competition use
• Compatible: Suitable for use with petrol, and E85 ethanol fuel

Specification

Material: Aluminium
Fitting Size: AN-6 (-6)
Locking Mechanism: Push & twist bayonet
Compatible Fluids: Petrol · E85
