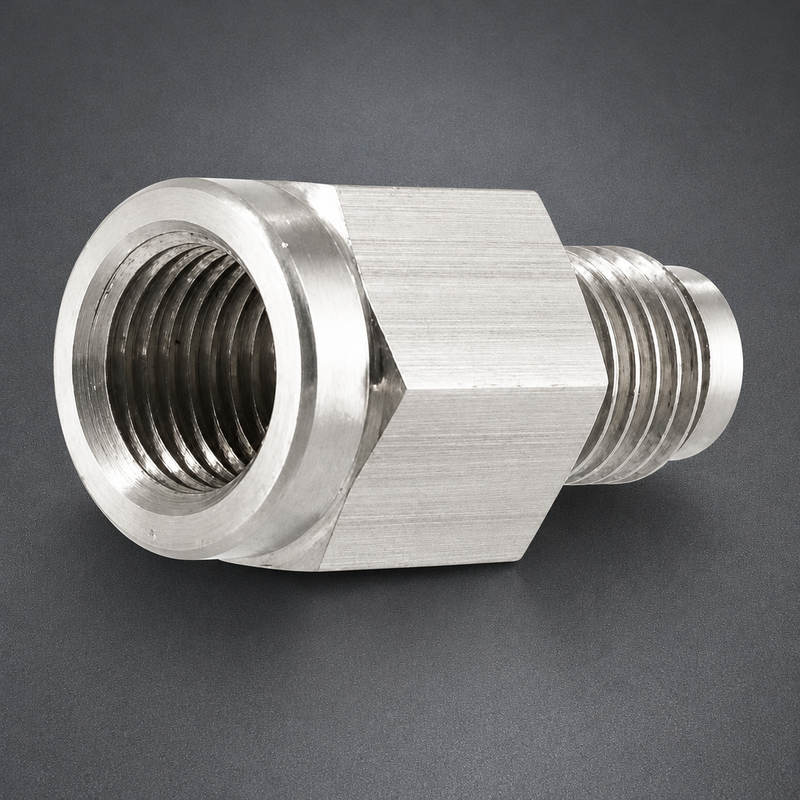

AN3 To 1/8" NPT Female Gauge Take-Off Adapter – Stainless Steel

A precision-machined stainless steel adapter fitting with an AN3 (-3 / 3/8" x 24 UNF) male thread on one end and a 1/8" NPT female port on the other. Designed as a gauge take-off or sensor port adapter, allowing oil pressure, fuel pressure, water temperature, or brake pressure gauges and sensors with 1/8" NPT male threads to be tapped into an AN3 line or fitting.

Typical Applications

• Oil pressure gauge or sensor take-off in AN3 oil line systems
• Fuel pressure gauge take-off in AN3 fuel line systems
• Water temperature sensor port in AN3 coolant lines
• Brake pressure sensor connection in AN3 brake systems

Product Details

• Male Thread 1: AN3 male (-3 / 3/8" x 24 UNF)
• Female Thread 2: 1/8" NPT female
• Material: Stainless steel
• Sold individually

Supplied by BRT Motorsport — performance hose and brake fitting specialists. Fast UK dispatch.
