Description

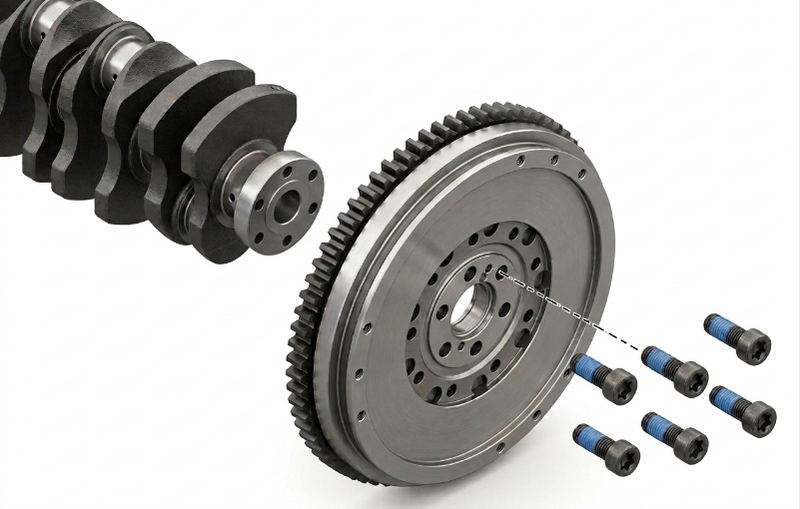

Abarth 500 / 595 Flywheel Bolt — Single (6 Required Per Flywheel)
Replacement flywheel bolt for the Abarth 500 and 595, sold as a single unit. 6 bolts are required for a complete flywheel fitting. Flywheel bolts are a single-use fastener — they must be replaced every time the flywheel is removed, whether fitting a new solid mass flywheel, replacing a dual mass flywheel, or carrying out clutch work that requires flywheel removal. Reusing old flywheel bolts is a safety risk and is not recommended under any circumstances.
Important: Always replace all flywheel bolts when removing the flywheel. These are torque-to-yield (TTY) fasteners that stretch during tightening and cannot be safely reused. Reusing stretched flywheel bolts risks flywheel detachment, which can cause catastrophic gearbox and engine damage. Order 6 for a complete set.
Key Specifications
- Fitment: Abarth 500 and 595
- Application: Flywheel to crankshaft bolt
- Type: Single-use torque-to-yield (TTY) fastener
- Supplied: Single bolt — order 6 for a complete flywheel fitting
Why Flywheel Bolts Must Be Replaced
Flywheel bolts are torque-to-yield (TTY) fasteners. When tightened to the specified torque, they stretch slightly beyond their elastic limit — this controlled stretch is what creates the clamping force that holds the flywheel securely to the crankshaft. Once a TTY bolt has been stretched, it cannot generate the same clamping force if retightened. Reusing a stretched flywheel bolt risks:
- Insufficient clamping force on the flywheel
- Flywheel movement or detachment under load
- Catastrophic damage to the engine, gearbox, and clutch
At the cost of a bolt, there is no justification for reusing old ones. Always fit 6 new bolts when the flywheel is removed.
When to Order Flywheel Bolts
- Fitting a solid mass flywheel conversion — see our Abarth 500/595 Solid Mass Flywheel
- Replacing a worn or failed dual mass flywheel
- Any clutch replacement that requires flywheel removal
- Engine removal or crankshaft work
Fitment & Compatibility
Designed for the Abarth 500 and 595. Always torque flywheel bolts to the manufacturer’s specified torque setting — do not reuse old bolts or estimate torque by feel. Professional installation by a qualified transmission specialist is strongly recommended. For other Abarth drivetrain components, see our full Abarth range.
Why Choose BRT Motorsport?
Specialists in Abarth performance and motorsport parts. Quality components and parts for Abarth 500 and 595 from BRT Motorsport.
