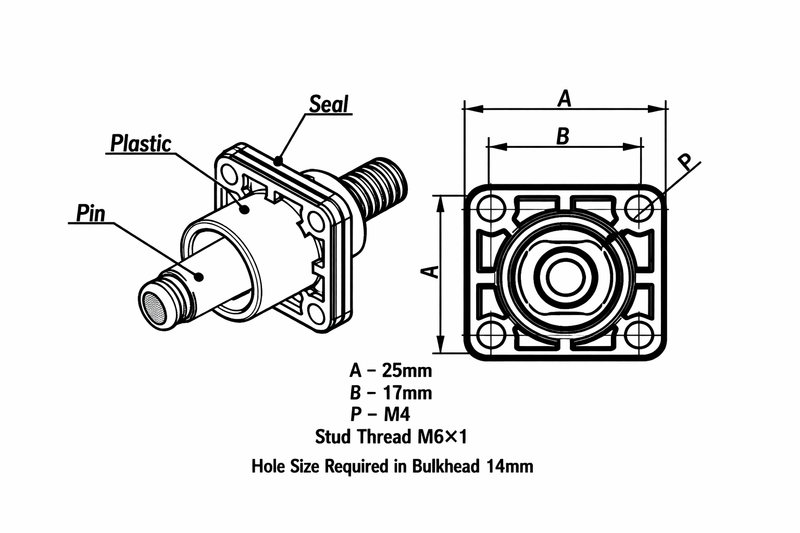

Battery Cable Bulkhead Connector — M6 Thread & Quick Connect, 120A

A 120A rated battery cable bulkhead connector designed for motorsport and performance vehicle wiring builds. Features an M6 threaded stud on one side for a secure bolted cable connection, and a quick-connect push fitting on the other side for fast, tool-free disconnection. Ideal for passing battery cables cleanly through a bulkhead or firewall on race cars, track cars, and performance road builds.

Key Specifications

• Current Rating: 120A
• Connection Side 1: M6 threaded stud (bolted cable lug)
• Connection Side 2: Quick-connect push fitting
• Application: Bulkhead / firewall battery cable routing

Why Use a Bulkhead Connector?

Passing battery cables through a bulkhead or firewall without a proper connector creates a potential chafe and short circuit risk. A bulkhead connector provides a clean, sealed pass-through point that protects the cable, maintains electrical integrity, and allows the battery cable to be quickly disconnected from outside the car — an important safety feature for race and track use. Many motorsport regulations require a bulkhead connector as part of the electrical safety system.

Fitment & Compatibility

Universal fitment — suitable for any vehicle requiring a battery cable bulkhead pass-through. Mount through a drilled hole in the bulkhead or firewall. Ensure the cable lug used on the M6 side is rated to at least 120A. Always verify current requirements against your vehicle's electrical system before ordering.
