Braided Brake Hose & Brake Fittings

Braided Brake Hoses & Brake Fittings

Stainless steel braided brake hoses and the full range of end fittings to build them, made to order in the UK by BRT Motorsport. Every hose is built to your specified length, colour and fitting combination .

Rubber brake hoses expand under pressure. That expansion is what gives an older car its soft, vague pedal: some of the force you apply at the pedal goes into swelling the hose rather than clamping the pads. A PTFE-lined hose inside a stainless braid doesn't expand, so pedal feel is firmer, more consistent, and doesn't deteriorate as the fluid heats up on track.

Hose specification

  • PTFE inner core — chemically inert, unaffected by brake fluid, and dimensionally stable under heat
  • Stainless steel outer braid — resists abrasion, stone chips and corrosion
  • 4,206 PSI maximum working pressure
  • Nine colours — red, blue, black, yellow, orange, green, purple, carbon and clear
  • Built to order, from 80mm to 8,000mm

Identifying the fitting you need

Most people come here knowing they need a hose and not knowing which end fittings. Four things determine it:

Thread size and pitch. The common brake threads are M10x1, M10x1.25, M10x1.5, M12x1, M12x1.25, M12x1.5, 3/8" UNF, 7/16"x20, 7/16"x24 and 1/8" BSP. M10x1 is by far the most common on European cars. Thread pitch matters as much as diameter — an M10x1 will start to thread into an M10x1.25 port and then bind.

Male or female. A male fitting has the external thread and screws into a port. A female fitting has an internal thread and receives a male union.

Fixed or swivel. A swivel nut rotates freely on the hose end, letting you align the hose without twisting it during installation. A fixed fitting doesn't, so the hose must be routed to suit. Swivel is easier to fit in almost every case.

Circlip groove or plain. Many VAG, Ford, Renault and Toyota calipers locate the hose with a circlip or horseshoe clip that sits in a machined groove on the fitting. If your original hose has a clip retaining it at the caliper or chassis bracket, you need a circlip groove fitting rather than a plain one.

What's in this collection

  • Banjo hose ends — M8, M10 3/8", M12 and 7/16", including extended and double-exit banjos
  • Male fittings — fixed and swivel nut, in M10x1, M10x1.25, M12x1, 3/8" UNF, 7/16"x20 and 7/16"x24
  • Female fittings — swivel nut, fixed and square swivel, across the same thread range
  • Circlip groove females — including 17mm and 19mm hex, milled flat, and VAG, Ford, Porsche and Toyota specific patterns
  • Bulkhead fittings and lock nuts — M10x1, M16 external, 3/8" UNF and 7/16", for chassis pass-throughs
  • Clutch fittings — Audi, BMW, Renault Mégane and Renault push-in connectors
  • Braided hose by the millimetre — in all nine colours

Building a custom hose

Use our Custom Brake Hose Builder to specify both ends, the angle at each end, colour and exact length, and we'll build it. Straight, 20°, 45° and 90° bends are available on most fittings.

Not sure what you need?

Send us a photo of your existing hose ends, or your vehicle Make & Model, and we'll identify the fittings for you before you order. We build these daily and can usually tell from a picture.

Related: brake fitting adaptors, banjo bolts, copper washers, hose locators.

Filters

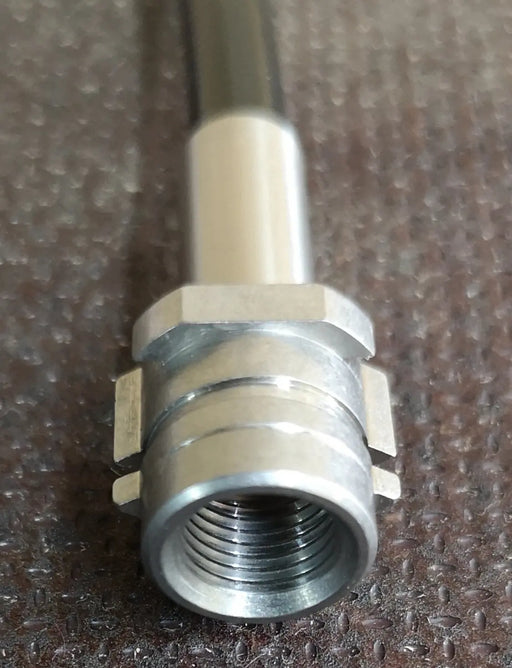

Fixed Female M10x1 Porsche Vag
Fixed Female M10x1 Porsche Vag
£9.49 - £9.49
£9.49
£9.49 - £9.49
£9.49

Fixed Female M10x1 Porsche Vag

BRT Motorsport

Fixed Female M10x1 Porsche VAG – Stainless Steel Brake Hose Fitting The fixed female M10x1 Porsche VAG fitting is a vehicle-specific straight brake...

View full details
£9.49 - £9.49
£9.49
£9.49 - £9.49
£9.49
M10x1 Swivel Female Bulkhead Fitting
M10x1 Swivel Female Bulkhead Fitting
£8.75 - £8.75
£8.75
£8.75 - £8.75
£8.75

M10x1 Swivel Female Bulkhead Fitting

BRT Motorsport

M10x1 Swivel Female Bulkhead Fitting – Stainless Steel Brake Hose Fitting The M10x1 swivel female bulkhead fitting is designed for routing AN3 brai...

View full details
£8.75 - £8.75
£8.75
£8.75 - £8.75
£8.75

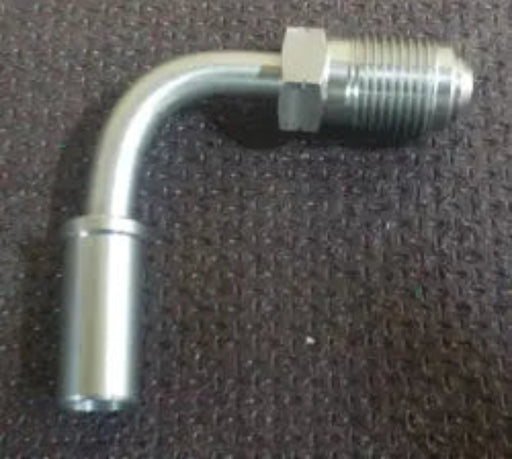

M12x1 Male Swivel Nut
M12x1 Male Swivel Nut
£6.25 - £12.49
£6.25 - £12.49
£6.25 - £12.49
£6.25

M12x1 Male Swivel Nut

BRT Motorsport

M12x1 Male Swivel Nut – Stainless Steel Brake Hose Fitting The M12x1 male swivel nut is a end fitting for AN3 braided brake hose, allowing the hose...

View full details
£6.25 - £12.49
£6.25 - £12.49
£6.25 - £12.49
£6.25

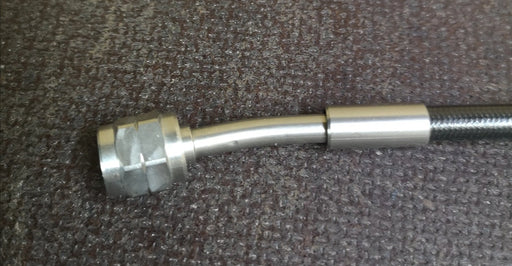

M12 Female For -3 Hose
M12 Female For -3 Hose
£11.08 - £12.30
£11.08 - £12.30
£11.08 - £12.30
£11.08

M12x1 Female For -3 Hose

BRT Motorsport

M12x1 Female Swivel Nut – Stainless Steel Brake Hose Fitting for AN3 (-3) Hose The M12x1 female swivel nut is a end fitting for AN3 (-3) braided br...

View full details
£11.08 - £12.30
£11.08 - £12.30
£11.08 - £12.30
£11.08
M12 Female For -3 Hose
M12 Female For -3 Hose
£11.08 - £12.30
£11.08 - £12.30
£11.08 - £12.30
£11.08

M12x1.25 Female For -3 Hose

BRT Motorsport
In stock

M12x1.25 Female Swivel Nut – Stainless Steel Brake Hose Fitting for AN3 (-3) Hose The M12x1.25 female swivel nut is a end fitting for AN3 (-3) brai...

View full details
£11.08 - £12.30
£11.08 - £12.30
£11.08 - £12.30
£11.08
M12 Female For -3 Hose
M12 Female For -3 Hose
£11.08 - £12.30
£11.08 - £12.30
£11.08 - £12.30
£11.08

M12x1.5 Female For -3 Hose

BRT Motorsport
In stock

M12x1.5 Female Swivel Nut – Stainless Steel Brake Hose Fitting for AN3 (-3) Hose The M12x1.5 female swivel nut is a end fitting for AN3 (-3) braide...

View full details
£11.08 - £12.30
£11.08 - £12.30
£11.08 - £12.30
£11.08
3/8" UNF Fixed Male
£5.79 - £5.79
£5.79
£5.79 - £5.79
£5.79

3/8" UNF Fixed Male

BRT Motorsport

3/8" UNF Fixed Male – Stainless Steel Brake Hose Fitting The 3/8" UNF fixed male fitting is a straight, non-adjustable end fitting for AN3 braided ...

View full details
£5.79 - £5.79
£5.79
£5.79 - £5.79
£5.79
-3 3 8" UNF Fixed Male Bulkhead
-3 3 8" UNF Fixed Male Bulkhead
£6.49 - £6.49
£6.49
£6.49 - £6.49
£6.49

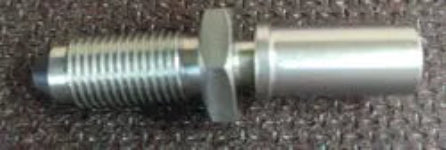

3/8" UNF Fixed Male Bulkhead

BRT Motorsport

3/8" UNF Fixed Male Bulkhead – Stainless Steel Brake Hose Fitting The 3/8" UNF fixed male bulkhead fitting is designed for routing AN3 braided brak...

View full details
£6.49 - £6.49
£6.49
£6.49 - £6.49
£6.49
-3 3 8" UNF Male Swivel Nut
-3 3 8" UNF Male Swivel Nut
£5.68 - £11.85
£5.68 - £11.85
£5.68 - £11.85
£5.68

3/8" UNF Male Swivel Nut

BRT Motorsport

3/8" UNF Male Swivel Nut – Stainless Steel Brake Hose Fitting The 3/8" UNF male swivel nut is a end fitting for AN3 braided brake hose, allowing th...

View full details
£5.68 - £11.85
£5.68 - £11.85
£5.68 - £11.85
£5.68
-3 3 8" UNF Female Swivel Nut
-3 3 8" UNF Female Swivel Nut
£6.98 - £8.75
£6.98 - £8.75
£6.98 - £8.75
£6.98

3/8" UNF Female Swivel Nut

BRT Motorsport

3/8" UNF Female Swivel Nut – Stainless Steel Brake Hose Fitting The 3/8" UNF female swivel nut is a adjustable end fitting for AN3 braided brake ho...

View full details
£6.98 - £8.75
£6.98 - £8.75
£6.98 - £8.75
£6.98
3 8" UNF Circlip Groove Swivel Female
3 8" UNF Circlip Groove Swivel Female
£7.95 - £7.95
£7.95
£7.95 - £7.95
£7.95

3/8" UNF Circlip Groove Swivel Female

BRT Motorsport

3/8" UNF Circlip Groove Swivel Female – Stainless Steel Brake Hose Fitting The 3/8" UNF circlip groove swivel female fitting is a specialist brake ...

View full details
£7.95 - £7.95
£7.95
£7.95 - £7.95
£7.95

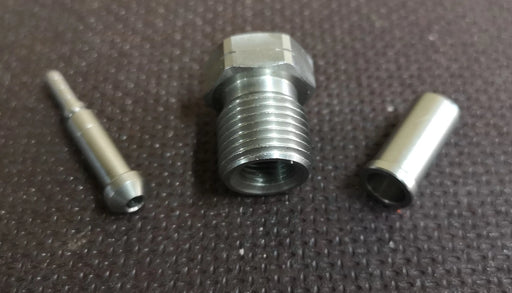

Female Internal M10x1 / M16 External Bulkhead
Female Internal M10x1 / M16 External Bulkhead
£7.95 - £7.95
£7.95
£7.95 - £7.95
£7.95

Female Internal M10x1 M16 External Bulkhead

BRT Motorsport

Female Internal M10x1 / M16 External Bulkhead – Stainless Steel Brake Hose Fitting The female internal M10x1 / M16 external bulkhead fitting is a d...

View full details
£7.95 - £7.95
£7.95
£7.95 - £7.95
£7.95
Female Internal 3 8"x24 M16 External Bulkhead
Female Internal 3 8"x24 M16 External Bulkhead
£7.95 - £7.95
£7.95
£7.95 - £7.95
£7.95

Female Internal 3/8"x24 M16 External Bulkhead

BRT Motorsport

Female Internal 3/8"x24 / M16 External Bulkhead – Stainless Steel Brake Hose Fitting The female internal 3/8"x24 / M16 external bulkhead fitting is...

View full details
£7.95 - £7.95
£7.95
£7.95 - £7.95
£7.95
7 16" x 20 Female Swivel Nut
7 16" x 20 Female Swivel Nut
£9.95 - £10.98
£9.95 - £10.98
£9.95 - £10.98
£9.95

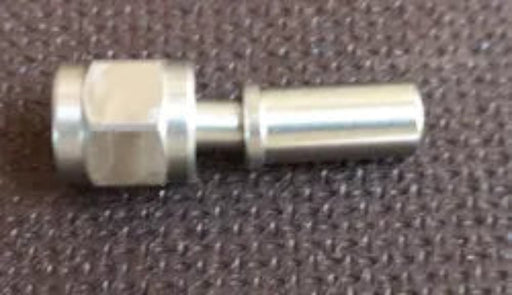

7/16" x 20 Female Swivel Nut

BRT Motorsport

7/16" x 20 Female Swivel Nut – Stainless Steel Brake Hose Fitting The 7/16" x 20 female swivel nut is a end fitting for AN3 braided brake hose, des...

View full details
£9.95 - £10.98
£9.95 - £10.98
£9.95 - £10.98
£9.95
7/16 x 24 Circlip Groove Swivel Female
£8.95 - £8.95
£8.95
£8.95 - £8.95
£8.95

7/16 x 24 Circlip Groove Swivel Female

BRT Motorsport

7/16" x 24 Circlip Groove Swivel Female – Brake Hose Fitting The 7/16" x 24 circlip groove swivel female fitting is a specialist brake hose end for...

View full details
£8.95 - £8.95
£8.95
£8.95 - £8.95
£8.95
7 16"x20 Male Swivel Nut
7/16"x20 Male Swivel Nut
£5.68 - £11.85
£5.68 - £11.85
£5.68 - £11.85
£5.68

7/16"x20 Male Swivel Nut

BRT Motorsport

7/16" x 20 Male Swivel Nut – Stainless Steel Brake Hose Fitting The 7/16" x 20 male swivel nut is a end fitting for AN3 braided brake hose, allowin...

View full details
£5.68 - £11.85
£5.68 - £11.85
£5.68 - £11.85
£5.68
7/16 Bulkhead Fitting For -3 Hose
£6.56 - £6.56
£6.56
£6.56 - £6.56
£6.56

7/16 x 20 Bulkhead Fitting For -3 Hose

BRT Motorsport

7/16" x 20 Fixed Male Bulkhead Fitting – Stainless Steel Brake Hose Fitting The 7/16" x 20 fixed male bulkhead fitting is designed for routing AN3 ...

View full details
£6.56 - £6.56
£6.56
£6.56 - £6.56
£6.56
7/16 Bulkhead Lock Nut
£1.25 - £1.25
£1.25
£1.25 - £1.25
£1.25

7/16 Bulkhead Lock Nut

BRT Motorsport
In stock

7/16" x 20 Bulkhead Lock Nut – Stainless Steel The 7/16" x 20 bulkhead lock nut is used to secure a 7/16" x 20 UNF bulkhead fitting through a panel...

View full details
£1.25 - £1.25
£1.25
£1.25 - £1.25
£1.25
7/16x24 Male Swivel Nut
£14.20 - £14.20
£14.20
£14.20 - £14.20
£14.20

7/16x24 Male Swivel Nut

BRT Motorsport

7/16" x 24 Male Swivel Nut – Brake Hose Fitting The 7/16" x 24 male swivel nut is a end fitting for AN3 braided brake hose, allowing the hose end t...

View full details
£14.20 - £14.20
£14.20
£14.20 - £14.20
£14.20
1 8" BSP Female Swivel Nut
1 8" BSP Female Swivel Nut
£6.98 - £8.75
£6.98 - £8.75
£6.98 - £8.75
£6.98

1/8" BSP Female Swivel Nut

BRT Motorsport

1/8" BSP Female Swivel Nut – Stainless Steel Brake Hose Fitting The 1/8" BSP female swivel nut is end fitting for AN3 braided brake hose, designed ...

View full details
£6.98 - £8.75
£6.98 - £8.75
£6.98 - £8.75
£6.98
1 8" BSP Male Tube Nut
1 8" BSP Male Tube Nut
£5.68 - £11.85
£5.68 - £11.85
£5.68 - £11.85
£5.68

1/8" BSP Male Tube Nut

BRT Motorsport

1/8" BSP Male Tube Nut – Stainless Steel Brake Hose Fitting The 1/8" BSP male tube nut is a end fitting for AN3 braided brake hose, designed to con...

View full details
£5.68 - £11.85
£5.68 - £11.85
£5.68 - £11.85
£5.68
Audi 1 Clutch Fitting
£9.45 - £9.45
£9.45
£9.45 - £9.45
£9.45

Audi 1 Clutch Fitting

BRT Motorsport
In stock

Audi 1 Clutch Fitting – Stainless Steel Braided Hose Fitting The Audi 1 clutch fitting is a vehicle-specific stainless steel end fitting designed f...

View full details
£9.45 - £9.45
£9.45
£9.45 - £9.45
£9.45
Audi 2 Clutch Fitting
£9.45 - £9.45
£9.45
£9.45 - £9.45
£9.45

Audi 2 Clutch Fitting

BRT Motorsport
In stock

Audi 2 Clutch Fitting – Stainless Steel Braided Hose Fitting The Audi 2 clutch fitting is a vehicle-specific stainless steel end fitting designed f...

View full details
£9.45 - £9.45
£9.45
£9.45 - £9.45
£9.45
BMW Evo Audi Megane Clutch Hose Fitting
£9.45 - £9.45
£9.45
£9.45 - £9.45
£9.45

BMW Evo Megane Clutch Fitting

BRT Motorsport
In stock

BMW / Evo / Megane Clutch Fitting – Stainless Steel Braided Hose Fitting The BMW / Evo / Megane clutch fitting is a vehicle-specific stainless stee...

View full details
£9.45 - £9.45
£9.45
£9.45 - £9.45
£9.45
