Description
AN4 Stainless Steel Hose End — 7/16" x 20 Female Swivel, Straight / 45° / 90°
A stainless steel AN4 (-4 AN / 4 JIC) female swivel nut hose end for use with AN4 PTFE stainless steel braided hose. Available in straight, 45°, and 90° configurations to suit your routing requirements. Price includes the ferrule required for assembly. The female swivel nut connects to a male AN4 (7/16" x 20 UNF) port or fitting.
Key Specifications
- Size: AN4 (-4 AN / 4 JIC)
- Thread: 7/16" x 20 UNF female swivel
- Material: Stainless steel
- Configurations: Straight, 45° bend, 90° bend
- Ferrule: Included
- Compatible Hose: AN4 PTFE stainless steel braided hose
Choosing the Right Configuration

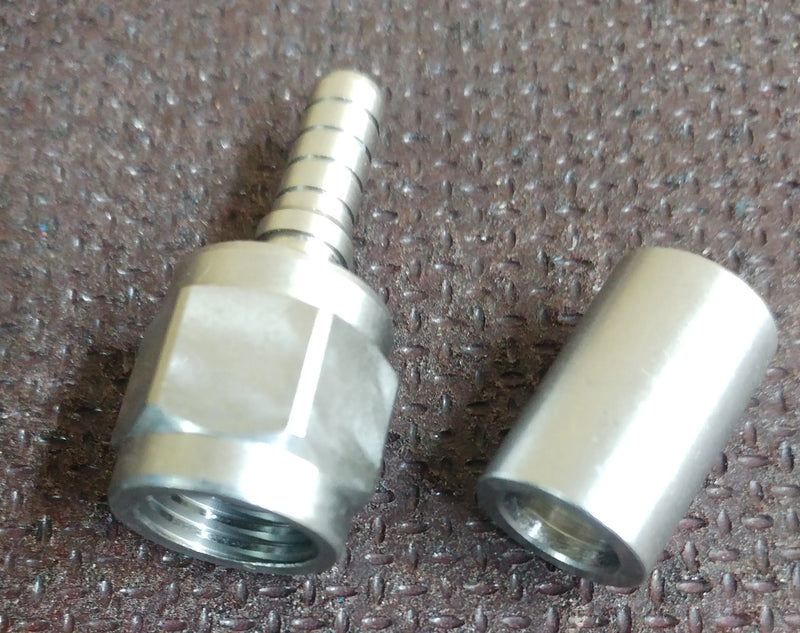

- Straight: For direct in-line connections where the hose runs parallel to the port.
- 45° Bend: For angled connections where a gentle change of direction is needed without stressing the hose.

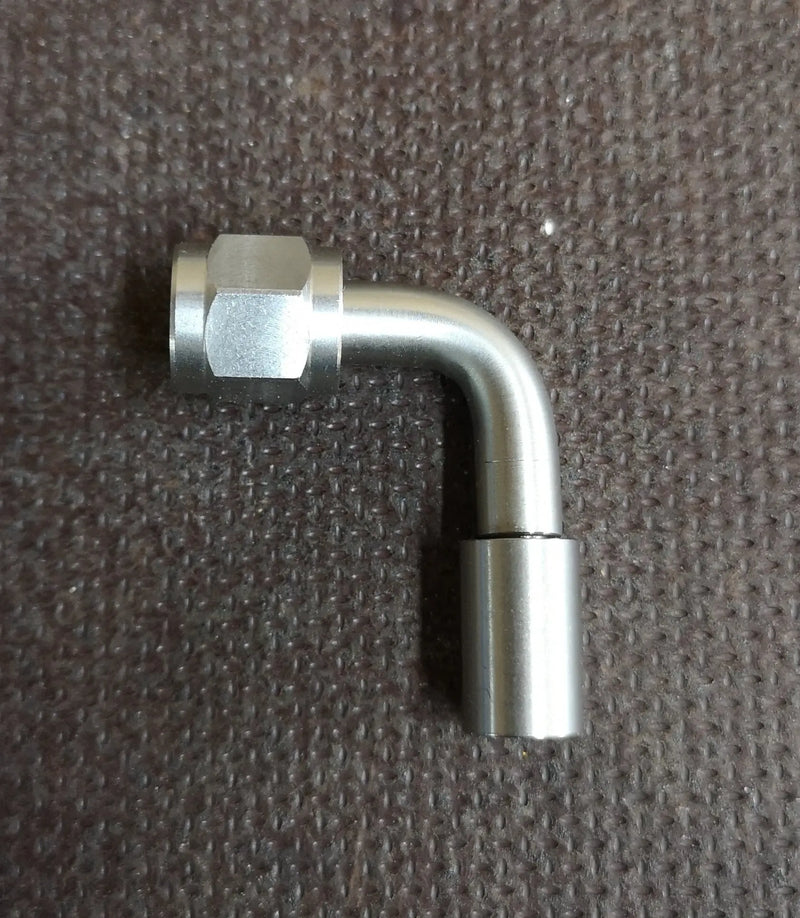

- 90° Bend: For tight routing where the hose needs to turn sharply away from the port — ideal for confined engine bay spaces.
Assembly

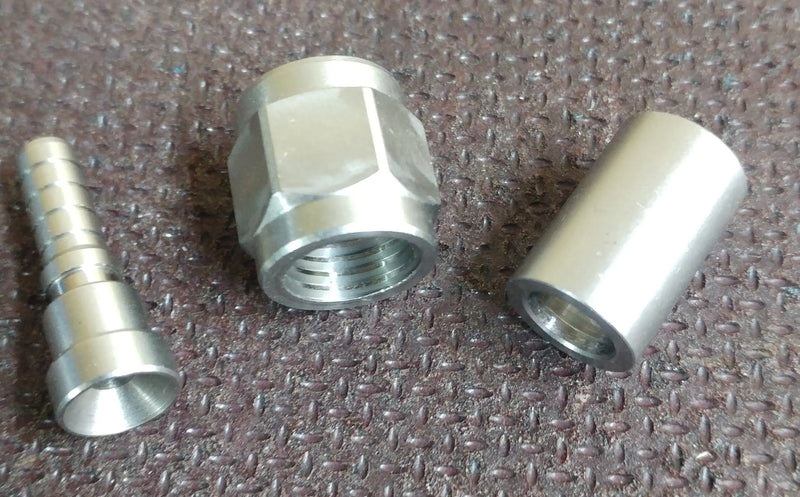

These are swaged-style hose ends designed for use with AN4 PTFE braided hose. The ferrule is supplied with the fitting. Slide the ferrule onto the hose, insert the hose end, and crimp or swage to complete the assembly. If you require a complete made-to-measure hose assembly, see our AN4 hose assembly service.
Common Applications
- Turbo oil feed lines
- Brake reservoir hoses
- Clutch lines
- Fuel lines
- Small-bore high-pressure fluid connections
Fitment & Compatibility
Compatible with AN4 PTFE stainless steel braided hose. The female swivel nut connects to any male AN4 (7/16" x 20 UNF) port or fitting. For other AN sizes, see our full range of AN hose ends and fittings.
Why Choose BRT Motorsport?
Quality AN fittings and hose for performance builds. Build clean, professional fluid lines with AN fittings from BRT Motorsport.
