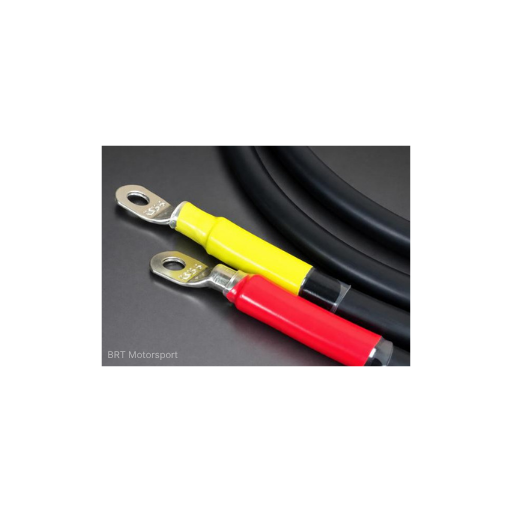

Motorsport Battery Cable – Made to Your Specification

High-quality flexible battery cable for motorsport, race car, and performance vehicle wiring. Available in 16mm² and 25mm², in both live (red tag) and earth (yellow tag) versions, with your choice of crimp eyelet size on each end. Priced per metre – order the quantity you need and specify your exact requirements.

Specifications

• 16mm² cable – rated to 110A continuous
• 25mm² cable – rated to 175A continuous
• Available as: Live (red tag) or Earth (yellow tag)
• End 1 crimp eyelet: M6, M8, or M10
• End 2 crimp eyelet: M6, M8, or M10
• Priced per metre

Applications

• Race car and motorsport battery wiring
• Main battery positive and negative leads
• Earth straps and chassis bonding
• Alternator and starter motor connections
• Custom loom builds and engine bay wiring
• Off-road and 4x4 auxiliary battery installations

Key Features

• Flexible multi-strand construction – ideal for tight routing in engine bays
• Colour-coded tags – red for live, yellow for earth
• Choice of M6, M8, or M10 crimp eyelets on each end
• 16mm² (110A) and 25mm² (175A) options available
• Custom lengths available – contact us with your requirements
• Made in the UK by BRT Motorsport

Compatible Accessories

The Battery Cable Quick Connect Connector – 120A, 16mm² can be crimped directly onto the 16mm² cable if required, making it easy to add a quick-disconnect capability to your battery loom. View our full range of battery connectors and accessories.

Need a specific length, a non-standard crimp size, or a bespoke configuration? Get in touch and we’ll build it to your spec.
